Inlet Connection
(male/female thread) |
Outlet Connection
(female thread) |
1/8 |
1/8,1/4 |
1/4 |
1/8,1/4,3/8 |
3/8 |
1/4,3/8 |
1/2 |
1/2 |
3/4 |
3/4 |

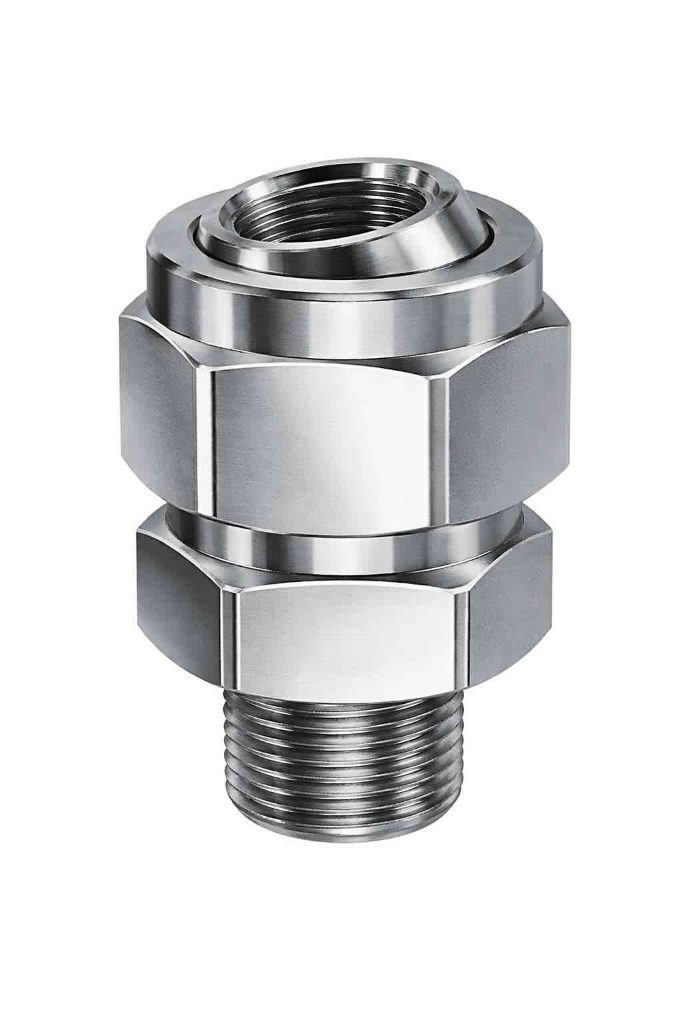

หัวต่อสามารถปรับทิศทางได้50° ใช้ต่อกับหัวฉีดน้ำ Spray Nozzle หรือหัวเป่าลม Air Nozzle เพื่อให้สามารถฉีดน้ำ
หรือ เป่าลมได้ตรงตามตำแหน่งที่ต้องการ

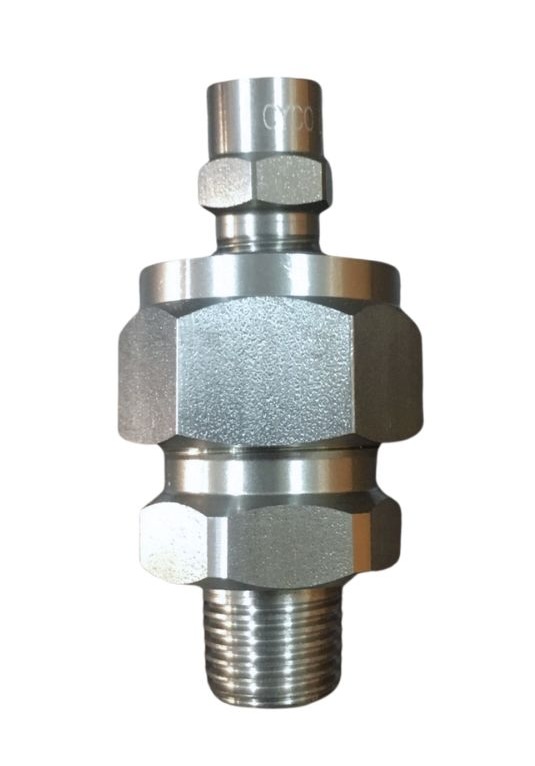

วัสดุที่มีให้เลือก คือ ทองเหลือง และ สแตนเลส 303 , 316
Provides adjustable positioning of nozzle for more exact
control of spray direction
• Permits accurate pipe alignment and nozzle positioning
without disturbing the pipe connection
Performance Data
• Enables easy removal and cleaning of nozzles
Adjustable Total Included Inlet Conn. Outlet Conn.
• Small fitting diameter enables use in applications
Ball Fitting Angle of NPT or NPT or
requiring a compact size
Number Adjustment BSPT (M) BSPT (F)
• Maximum pressure rating: 300 psi (21 bar) |
